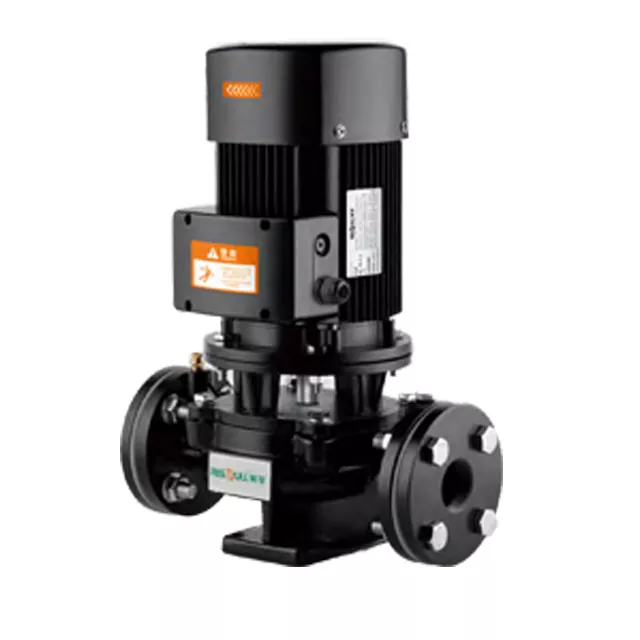

SMZ® as the professional manufacturer, we would like to provide you high quality Industrial Booster Pump. And we will offer you the best after-sale service and timely delivery.
One of the key features of the Industrial Booster Pump is its ability to handle a wide range of pumping needs. With its powerful motor and specialized impeller design, it can effectively pump a variety of liquids.
The Industrial Booster Pump also allow for personalized configurations, enabling operators to tailor it to their specific application. Additionally, it has a self-adjusting impeller that automatically adjusts its flow rate to match the demands of the application.
● Clean liquid without suspend solids ,non aggressive
● Continuous Service :S1
● Maximum Pressure:10 Bar
● Liquid Temperature:3℃~9℃
● Ambient Temperature:<40℃
● Insulation:F
● Protection:IP54
|
List of Main Component ●Standard Configuration 〇 Optional Configuration |
||
|
NO. |
Component |
Specification/Construction Characteristics |
|
1 |
PUMP BODY |
Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
2 |
IMPELLER |
Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
3 |
Mechanical Seal |
19BND Type（Furan Impregnation Graphite+SIC，Use Life 25,000+ Hours） |
|
4 |
Bracket |
Cast Iron HT200, Electrocoating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
5 |
Ball Bearings |
● C&U 〇 TPI(Taiwan) |
|
6 |
Motor Shaft |
● Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side) |
|
7 |
Terminal Box |
Aluminum ADC12 |
|
8 |
Terminal Board |
Flame Retarding PBT |
|
9 |
Motor Housing |
Aluminum ADC12 |
|
10 |
Fan |
●Plastic PP 〇 Nylon PA6 |
|
11 |
Fan Cover |
Tensile Steel Plate |
|
12 |
Plug Cord |
● 3 Core Testing Cable 〇 Customized Cable Plug |
|
13 |
Motor |
●IE2 Motor ◯ Customized 60 HZ Motor |
