Whether you need to circulate water in a large industrial space or simply want to keep your pool or garden well-hydrated, this pump is up to the task. It's easy to install and maintain, making it a hassle-free solution for anyone looking to improve their water circulation.
One of the key benefits of our High Pressure Water Pump For Circulation is its powerful motor. With a motor that generates enough horsepower to move large volumes of water, this pump is perfect for applications that require a lot of circulating power.

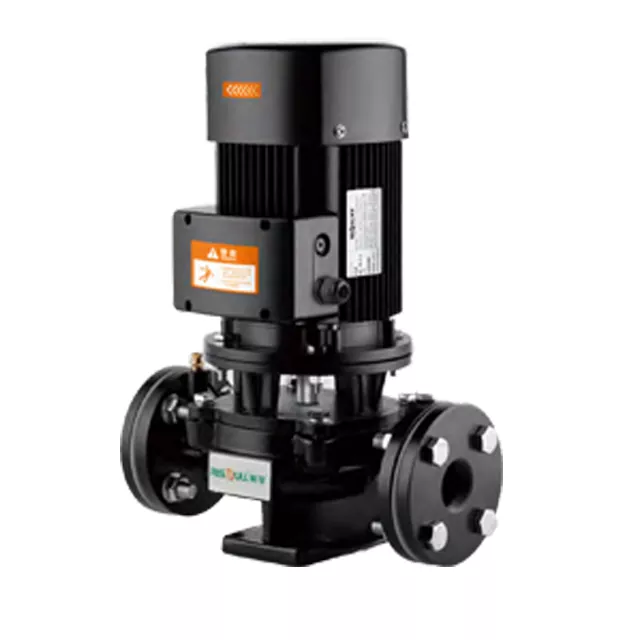

The following is an introduction of GD Series .It is the cast iron in line pump which is widely used in the central air conditioning of Building ,hot Water Circulation System of Building & Mansions & Mansions ,pipe circulation of plant and agricultural Irrigation..Hope to help you better understand Risefull industrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together.
● Clean liquid without suspend solids ,non aggressive
● Continuous Service :S1
● Maximum Pressure:10 Bar
● Liquid Temperature:3℃~9℃
● Ambient Temperature:<40℃
● Insulation:F
● Protection:IP54
|
List of Main Component ●Standard Configuration 〇 Optional Configuration |
||
|
NO. |
Component |
Specification/Construction Characteristics |
|
1 |
PUMP BODY |
Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
2 |
IMPELLER |
Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
3 |
Mechanical Seal |
19BND Type（Furan Impregnation Graphite+SIC，Use Life 25,000+ Hours） |
|
4 |
Bracket |
Cast Iron HT200, Electrocoating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
5 |
Ball Bearings |
● C&U 〇 TPI(Taiwan) |
|
6 |
Motor Shaft |
● Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side) |
|
7 |
Terminal Box |
Aluminum ADC12 |
|
8 |
Terminal Board |
Flame Retarding PBT |
|
9 |
Motor Housing |
Aluminum ADC12 |
|
10 |
Fan |
●Plastic PP 〇 Nylon PA6 |
|
11 |
Fan Cover |
Tensile Steel Plate |
|
12 |
Plug Cord |
● 3 Core Testing Cable 〇 Customized Cable Plug |
|
13 |
Motor |
●IE2 Motor ◯ Customized 60 HZ Motor |
