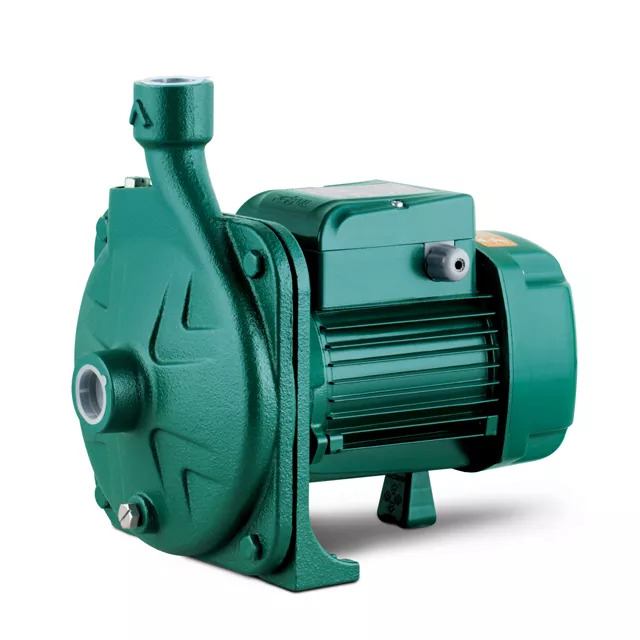

This High Flow Volumn Centrifugal Pump with a range of advanced features that ensure reliable and dependable performance every time. From its sturdy construction to its intuitive controls, this pump is designed to make your life easier while delivering consistent results.
The following is an introduction of CF Series .It is bigger flow centrifugal water pump for irrigation .Hope to help you better understand Risefull Indutrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together
|
Product Name: |
Centrifugal Pump |
|
Power |
0.75HP/1HP/1.5HP/2HP/3HP |
|
Max Flow |
300L/min 350L/min 400L/min 450L/min 1100L/min |
|
Max Head |
12M 14M 16M 19M 16M |
|
Inlet/outlet |
2”X2” 3”X3” |
|
Pump Body |
Cast Iron with Elector-coating |
|
Bracket |
Cast Iron |
|
Bracket Plate |
Cast Iron with Elector-coating |
|
Shaft |
S.S Shaft |
|
Impeller |
PPO Impeller /Brass Impeller |
|
Motor |
Copper wire |
|
Color |
Powder Color Coating |
|
MOQ: |
100pcs |
|
Sample Time: |
Within 7 days |
|
Production Time: |
35-40 days after order confirmation |
|
Certificate |
CE |
● Clean liquid without suspend solids ,non aggressive
● Continuous Service :S1
● Maximum Pressure:10 Bar
● Liquid Temperature:0℃~90℃
● Ambient Temperature:<40℃
● Insulation:B
● Protection:IP44
|
Model |
Power |
Q |
m³/h |
0 |
3.0 |
6.0 |
9.0 |
12.0 |
15.1 |
18.1 |
21.1 |
24.1 |
27.1 |
||
|
Single-phase |
Three-phase |
kW |
HP |
L/min |
0 |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
|
|
50CF550 |
50CF550T |
0.55 |
0.75 |
H |
M |
12 |
- |
11.5 |
11 |
*9.6 |
*8 |
5.6 |
|||
|
50CF750 |
50CF750T |
0.75 |
1 |
14 |
- |
13.6 |
13.2 |
*12 |
*10.5 |
8.5 |
5.5 |
||||
|
50CF1100 |
50CF1100T |
1.1 |
1.5 |
16 |
- |
15.8 |
15.5 |
15 |
*13.8 |
*12.5 |
*10.7 |
8.5 |
|||
|
50CF1500 |
50CF1500T |
1.5 |
2 |
19 |
- |
- |
18.5 |
18 |
*17.5 |
*16.5 |
*15 |
13 |
10 |
||
|
Model |
Power |
Q |
m³/h |
0 |
6.0 |
12.0 |
18.1 |
24.1 |
30.1 |
36.1 |
42.2 |
48.2 |
54.2 |
60.2 |
66.3 |
||
|
Single-phase |
Three-phase |
kW |
HP |
L/min |
0 |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
|
|
80CF2200 |
80CF2200T |
2.2 |
3 |
H |
M |
16 |
- |
- |
15.5 |
14.8 |
14 |
*13.4 |
*12.3 |
*11.2 |
*9.9 |
8.5 |
7 |
*High Efficiency Eta Of Pump
|
List of Main Component ●Standard Configuration 〇 Optional Configuration |
||
|
NO. |
Component |
Specification/Construction Characteristics |
|
1 |
PUMP BODY |
Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
|
2 |
IMPELLER |
●Brass（H58%+） 〇 PPO（High Temperature Resistant for 150℃） 〇 Stainless Steel（SUS304 Stamping & Welding） |
|
3 |
Mechanical Seal |
〇301 Type（Karbate Impervious Graphite+Ceramic） |
|
4 |
Bracket Plate |
●Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) 〇PPO（High Temperature Resistant For 150℃） |
|
5 |
Bracket |
Cast Iron HT200 |
|
6 |
Ball Bearings |
〇Standard Type ● C&U 〇 TPI(Taiwan) |
|
7 |
Motor Shaft |
Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side) |
|
8 |
Terminal Box |
Plastic ABS |
|
9 |
Terminal Board |
Flame Retarding PBT |
|
10 |
Capacitor |
●CBB60 Plastic Shell Capacitor 〇 CBB65 Explosion-proof Capacitor 〇 450VL@220-240V Motor 〇 300VL@110-127VMotor |
|
11 |
Motor Housing |
Aluminum ADC12 |
|
12 |
Fan |
●Plastic PP 〇 Nylon PA6 |
|
13 |
Fan Cover |
Plastic PP |
|
14 |
Plug Cord |
● 3 Core Testing Cable 〇 Customized Cable Plug |
|
15 |
Motor |
〇Standard Copper Wire ● High Efficiency Motor 〇 Economical Motor 〇 3-Phase Motor 〇 Customized 60 HZ Motor |
|
Model |
DN1 |
DN2 |
Main Intallation Dimension(mm) |
||||||||||
|
a |
f |
h |
h1 |
i |
l |
m |
n |
n1 |
w |
s |
|||
|
50CF1100 |
G2 |
G2 |
63 |
400 |
202 |
113 |
78 |
259 |
6 |
203 |
160 |
- |
10 |
|
50CF1500 |
G2 |
G2 |
63 |
400 |
202 |
113 |
78 |
259 |
6 |
203 |
160 |
- |
10 |
|
80CF2200 |
G3 |
G3 |
70 |
432 |
235 |
120 |
100 |
315 |
0 |
240 |
192 |
65 |
12 |
|
Item |
1~220V/50Hz |
3~380V/50Hz |
|
50CF550 |
3.5A |
1.4A |
|
50CF750 |
5A |
1.8A |
|
50CF1100 |
7.3A |
2.5A |
|
50CF1500 |
9.5A |
3.3A |
|
80CF2200 |
13.8A |
4.8A |
|
Model |
N.W. |
PCS/CTN |
G.W/CTN |
MEAS （CM) |
|
50CF550 |
13.05 |
1 |
14.60 |
32.5X22X29.5 |
|
50CF750 |
14.05 |
1 |
15.15 |
32.5X22X29.5 |
|
50CF1100 |
18.70 |
1 |
19.50 |
43X22.5X29.5 |
|
50CF1500 |
19.60 |
1 |
20.40 |
43X22.5X29.5 |
|
80CF2200 |
31.50 |
1 |
32.50 |
52X28X37 |
