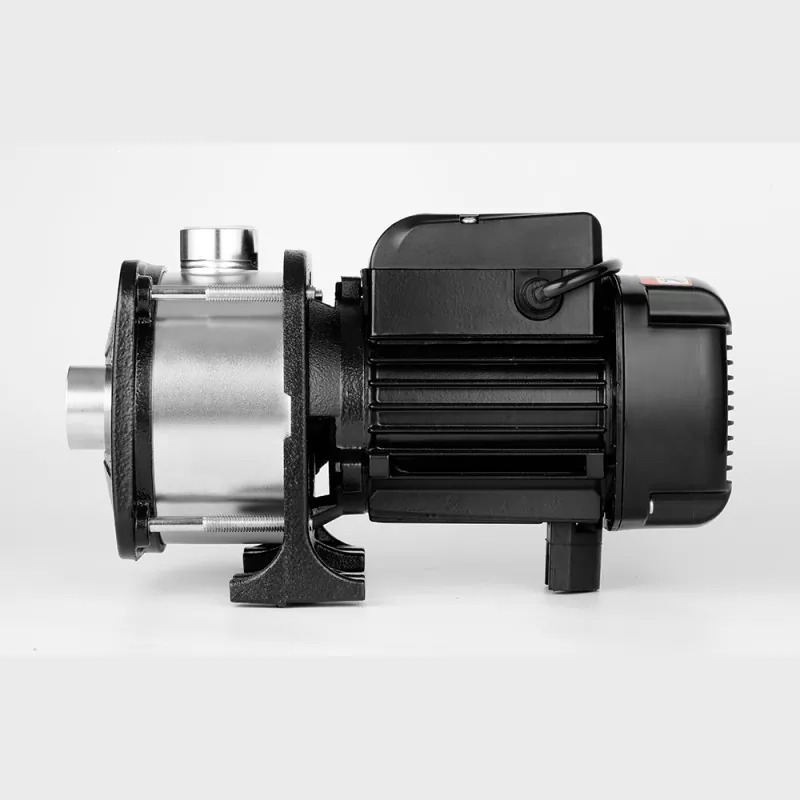

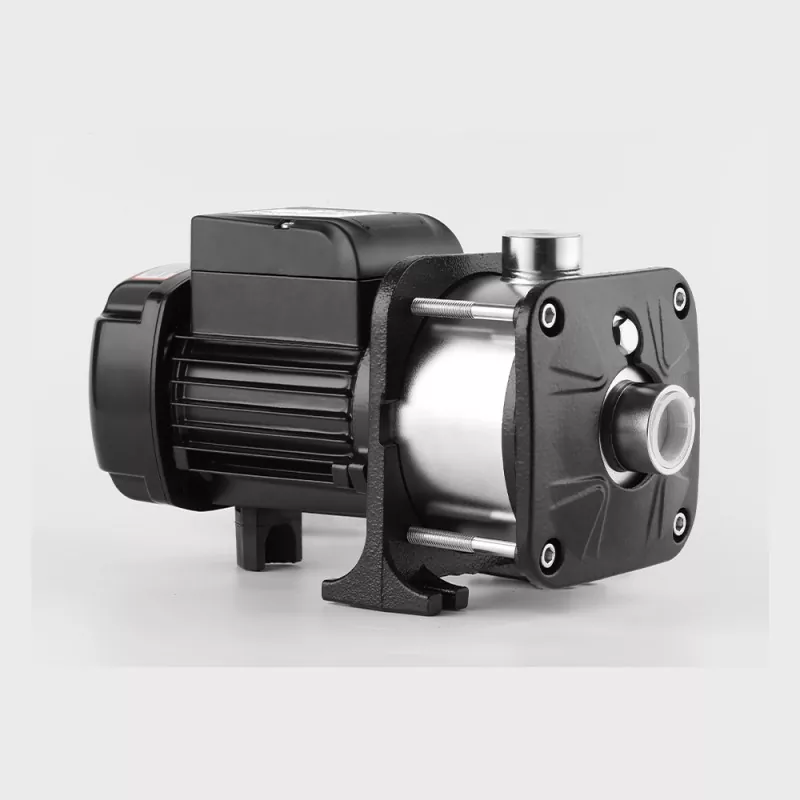

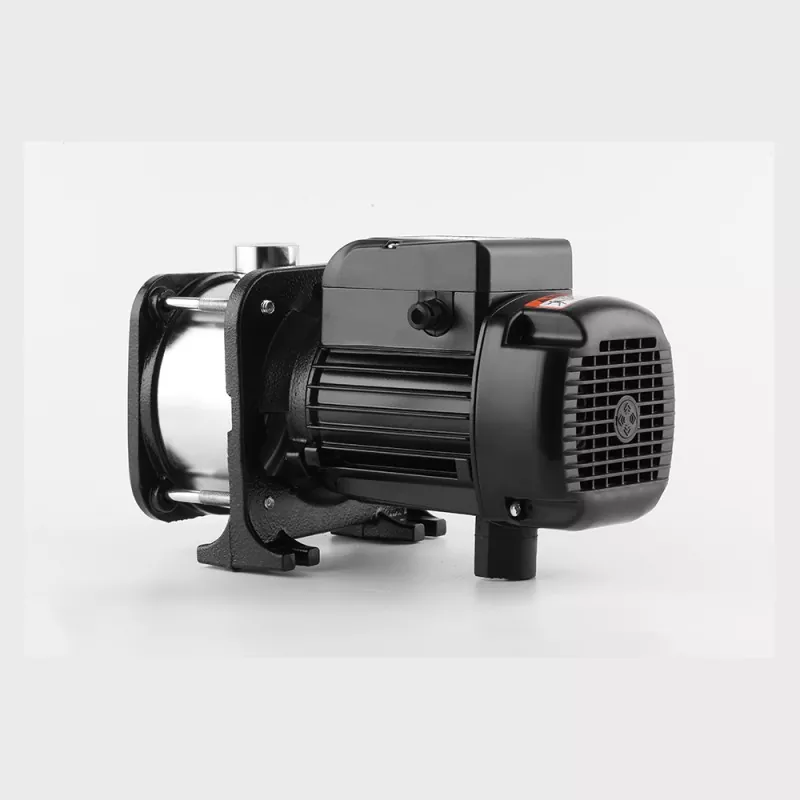

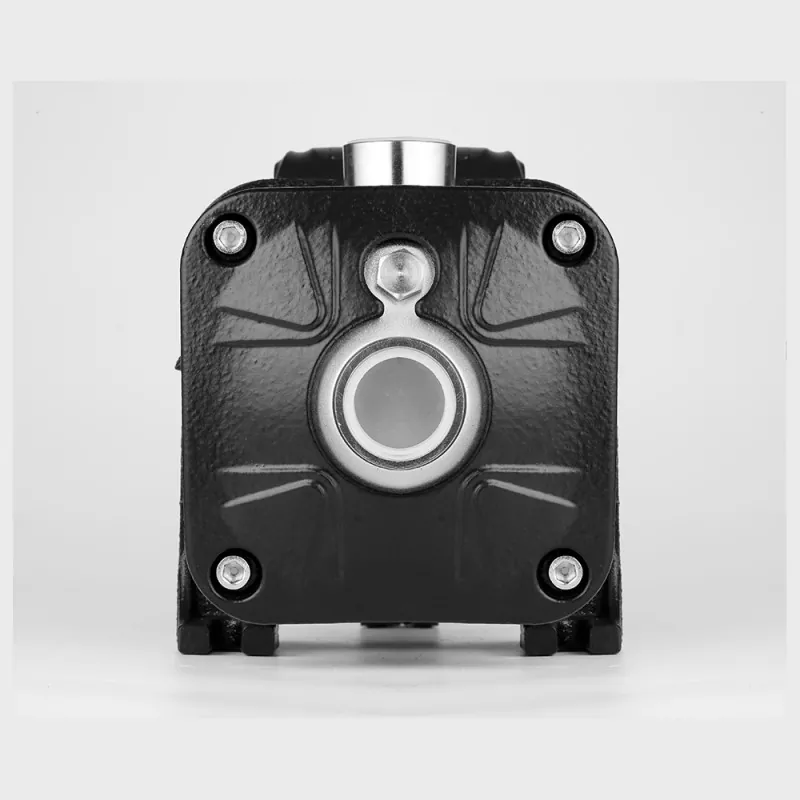

High Head Multistage Centrifugal Pump

This pump is made from high-quality stainless steel materials, ensuring a long-lasting and rust-free performance. With its compact design, the CHM-2 pump can fit in tight spaces while still delivering an impressive flow rate of up to 3 m³/h.

One of the most impressive features of this pump is its multistage design. With four impellers, the CHM-2 can generate high pressure, making it perfect for applications that require high head and high-pressure pumping.

High Head Multistage Centrifugal Pump features:

- Made from high-quality stainless steel materials

- Compact design with a flow rate of up to 3 m³/h

- Multistage design with four impellers for high pressure and lift up to 50 meters

- Easy to install and operate with low noise level and long service life

- Perfect for household, irrigation, and small-scale commercial applications

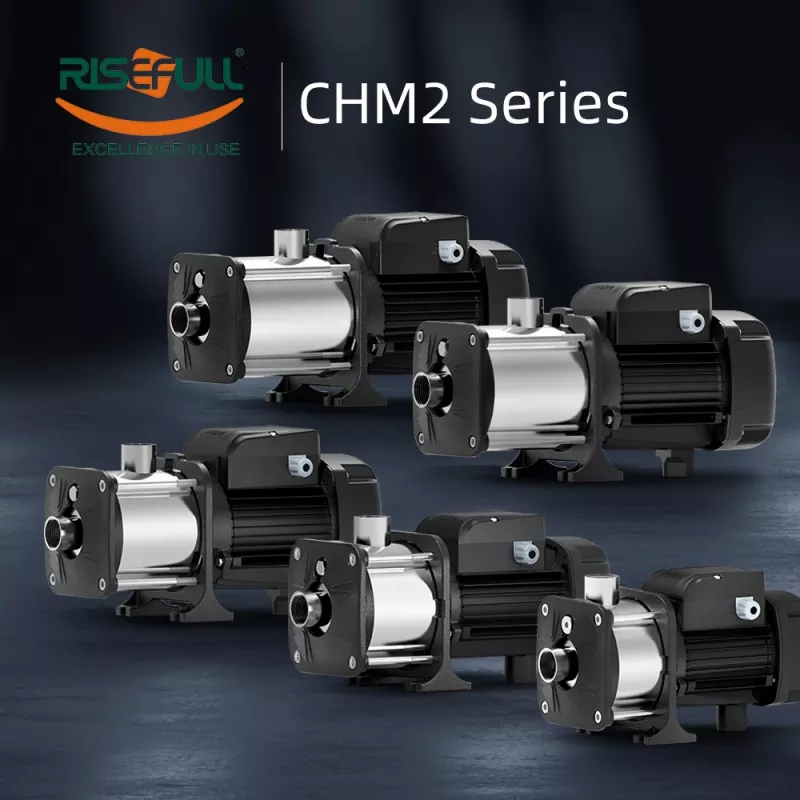

CHM series horizontal stainless steel multistage centrifugal pump is a relatively mature product on the market currently which is with compact structure and stable working, low operating noise, eiciency up to 44-70%. All water passing components are made of stainless steel AISI304 .It is widely used in

1. Air Conditioning Cooling system & HVAC system

2. Water Treatment: Water Cleaning and Water Filtering

3. Water supply system: Pipeline delivery and building booster

4.  Fishery Industry and Agriculture: Aquaculture, Farm sprinkling irrigation &drip irrigation

Product Details

Performance Data

Model	Power kW	Max Flow m³/h	Max Head m	Rated Point (Flow@Head)	Impeller Qty
CHM2-2	0.33	4.4	19.5	2m³/h@18m	2
CHM2-3	0.37	4.5	29.5	2m³/h@24m	3
CHM2-4	0.55	4.5	40	2m³/h@32m	4
CHM2-5	0.65	4.6	50	2m³/h@40m	5
CHM2-6	0.75	4.6	60	2m³/h@47m	6
CHM2-7	0.9	4.6	70	2m³/h@57m	7

Working Condition

1. Liquid Temperature: -15~105°c

2. Maximum Ambient Temperature: +45°C

3. Maximum Pressure: 10 Bar

4. Medium Physical Properties:

● Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)

● Antifreeze Liquid (Main component: glycol)

● Mild corrosive liquid (PH 5- 9)

● Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)

5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.

No.	Component	Material		No.	Component	Material
01	Screw	SUS201		20	Screw	SUS201
02	Drain Screw	AISI304		21	Bracket	HT200
03	O-ring	EPDM		22	Rotor	Welding Shaft with AISI304
04	Pump Body Cover	HT200		23	Bearing
05	Pump Body	AISI304		24	Coil Cork	NBR
06	Locknut	AISI304		25	Motor
07	Final Stage Location Sleeve	AISI304		26	Terminal Board	PBT
08	Inlet Diffuser	AISI304		27	Terminal Box	PP
09	Impeller	AISI304		28	Screw
10	Tungsten Steel Shaft Sleeve	Tungsten Steel		29	Capacitor
11	Support Diffuser	AISI304		30	Screw
12	Shaft Sleeve	AISI304		31	Cable Fairlead	PP
13	Shaft Sleeve	AISI304		32	Bottom Support
14	Diffuser	AISI304		33	Spring Washer
15	Oulet Diffuser	AISI304		34	Back Cover	HT200
16	Mechanical Seal	Graphite +SIC		35	Fan	ABS
17	O-ring	EPDM		36	Fan Cover	PP
18	Lining Disk	AISI304		37	Screw
19	Drop Guard	NBR
